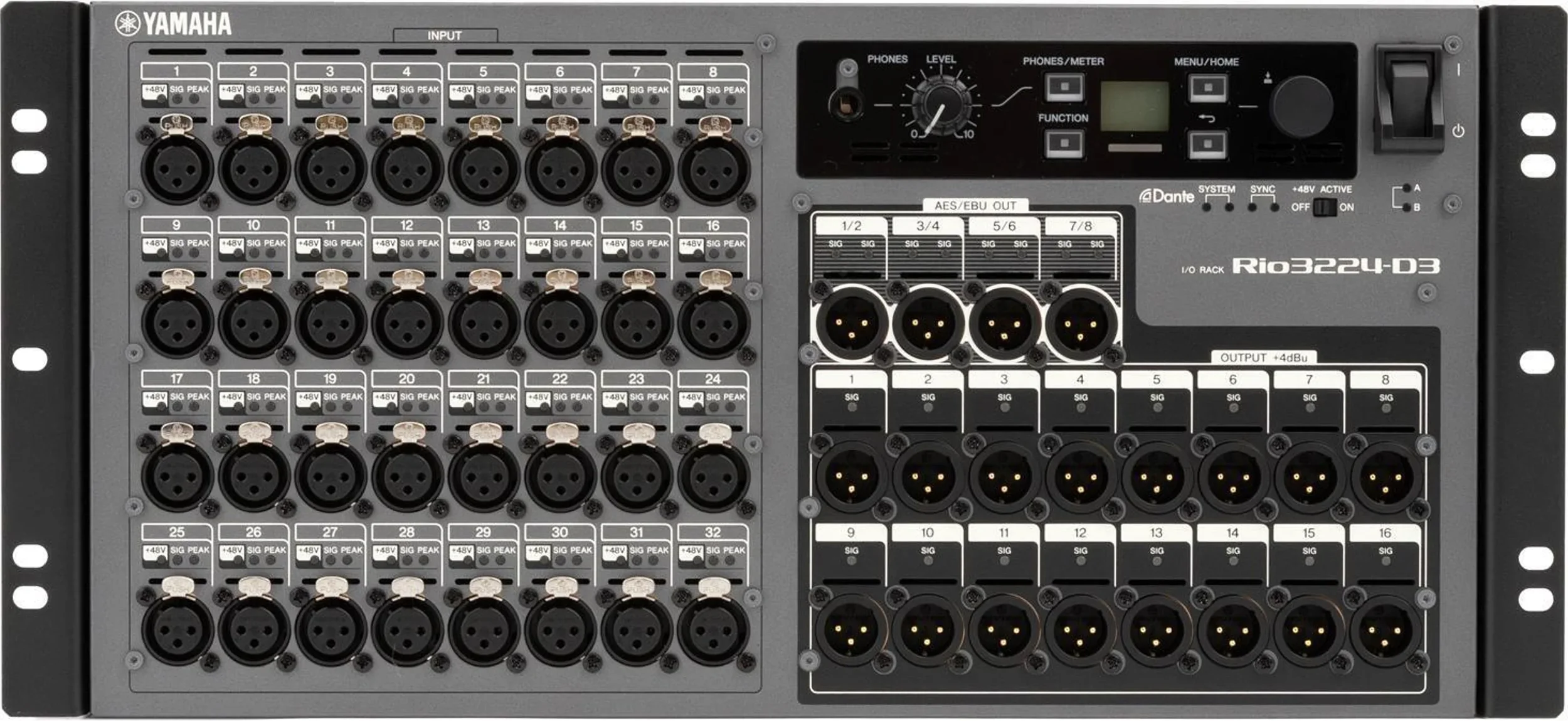

The third generation Rio3224-D3 and Rio1608-D3 are premium-quality, Dante-compatible I/O racks that deliver improved overall performance and come equipped with a newly added headphone socket, output delay, and a phase function, further expanding an already impressive range of potential applications. Both models are compatible with a wide range of Yamaha consoles, from our high-end RIVAGE PM and DM7 series digital mixers, to our industry standard CL and QL series consoles, playing a crucial role in configuring new systems or adding flexibility and depth to an existing sound reinforcement solution.

• Dante stage box

• 32 x 24 analog I/O

• 4 stereo AES outputs

• 16 head amplifiers (with switchable 48V phantom power)

• 32-bit AD/DA

• Connects directly to a Dante digital audio network

• Optimized dynamic range and noise

• Delay/Polarity/Gain function on output port

• I/O setting on LCD screen

• Headphone jack for monitoring

• Additional control-dedicated network port

• Sampling frequency for external clock: 44.1kHz, 48kHz, 88.2kHz, 96kHz

• Signal delay: <1.7ms

• Benefit from local control of gain and other parameters

• Character display offers easy visual confirmation of your settings

• Supports daisy-chain connections

• Redundant power supplies
